The BMW Diana’s

In touring car racing in the early 1960s, Hubert Hahne set the highlights for BMW. Hahne, who was born on 28th March 1935 in Moers on Rhine, and quickly discovered his passion for motor racing and in 1963 celebrated his first major success behind the wheel of a BMW 700, winning the European Touring Car Cup.

The following year, Hahne dominated the German Circuit Championship with a BMW 1800Ti. By the end of the season he won an impressive 14 of the 16-round season, his most successful year. In 1966, he won another European Championship and, with a BMW 2000Ti, he mastered the challenge of the “Green Hell” in 9:58.5 minutes, thus being the first touring car driver to lap the Nürburgring in less than ten minutes. He also goes on to win the Spa-Francorchamps 24-hour race with Jacky Ickx.
In 1966 and the following years, Hahne also successfully competed in Formula 2 and established two world records at Monza. In 1969, he finished runner-up in the European Formula 2 Championship and entered several Formula One races. A year later, in 1970 he retired from Motor racing and now lives in Italy.

Hubert Hahne, racing driver and BMW agent based in Dusseldorf presented one to his wife as a wedding present – ‘Diana Korner’ who was a German actress at the time. The “Diana” was a BMW 2002Ti with special equipment. Hahne decided then to carry out a small series of 12 cars, with the agreement of BMW, all painted of different colours, some with turbo engines or 6 cylinders. It is interesting to note that the numbers of chassis’s, as these cars are all successive, proving well that the Diana’s were not an official model in range BMW, the firm brought Hubert Hahne the necessary logistical support for the realisation of this very special series.

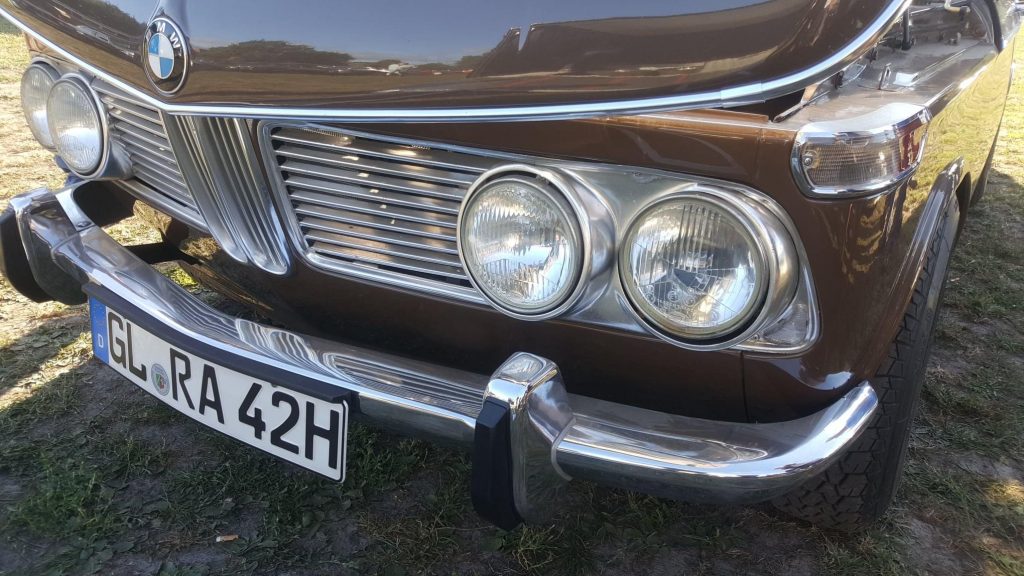

These “Diana’s” were also equipped with steel sliding roofs, racing bucket front seats, electric front windows, 5-speed gearboxes, racing door mirrors, top tint front windscreen, twin headlamp upgrade, dashboard and panels on the doors covered out of deer.

Andy Andexer (Chairman of the 02 Club in Germany) owns the only road-going example and he knows of the other 2 (I think they are basket cases). His car is insured for €60,000.

Strut Brace is a recent addition and wasn’t available in the 1970’s

How things have changed, or maybe they haven’t? In 1972 the year of the Munich Olympics BMW supplied two Inka Orange 1600-2 (there was a small fleet made for testing) for the opening ceremony and used as steward’s vehicles for the marathon and other long distance walking events. However, these were no ordinary 02’s, they were Electric vehicles.

BMW collaborated with Varta and Bosch, twelve 12v starter batteries were installed in the engine bay weighing 772lbs (350kg) that powered an electric motor that was good for 37 miles (70 km’s) driving at a constant 31 mph (50 kph). Where the gearbox was normally mounted a DC-Shunt wound motor weighing 85kg was installed the drive shafts were directly connected to the rear axle via a reducing gear, the cars speed was restricted by a pulse generator also developed by Bosch.

The electric 02 had no clutch or gearstick, only an accelerator controlled the cars motion. A lever was installed that could switch between forward and reverse drive. Obviously the car had no exhaust system and you could say “Zero emissions”. In place of the clock a gauge showed the remaining range left. All the electronics were installed in the boot and interior heating was provided by of course an electric fan. Interestingly the two front side windows were also electrically heated, but using these would serious limit the cars overall range.

Each car weighed an almighty 1331.5 kg’s and could reach a top speed of 90 kph, but properly took hours to reach it. Both cars still wore the “1600” badge on the rear panel and hidden behind the front centre kidney grill was the socket to charge the car.


Entwicklung Codes – The forgotten E-Numbers.

Did you know BMW also made the following cars makes very interesting reading?
E504 8-Cylinder 503 with a 3 Metre wheelbase 1956
E113 4-Cylinder 707 to 1300cc Prototype in 1960
E124 4-Cylinder Student Wagon Prototype in 1966
E126 was the pre-runner of the E3 with a 2.6 Litre engine
E4 was a Plastic Prototype from Bayer 1968
E7 was the Electric 02 for the 1972 German Olympics
E11 was an E3 with V8 Engine
E13 was an Amphian Prototype from 1970
E14 was a Jeep Prototype from 1970
E15 was a Plastic 2.8L Coupe again from 1970
E18 was a 6.5 Litre Coupe from Bizzarini 1970
E22 was a mid-Engine Auto based on the 2000 E121
E25 was the Paul Braq Turbo concept Codename X1 1975
E26 was a Sport Coupe based on the E25 with a M33 Engine
E28G was a Prototype E28 Touring 1977
E29 was an Electric E107 and the E29/2 was a City-coupe 1979
E33 was an E21 with Electric engine from 1980
E34S E34/5S were Hand finished M5 and M5 Touring
E36/5S E36 Compact with M3 Engine
E42 was 4-Cylinder car with Front Wheel Drive
E44 was a BMW Van project
E48 FWD Compact from Rover alliance
E49 FWD Compact from Rover but larger
E51 was a V12 Coupe cancelled with Rover
E53S was the X5 with the McLaren engine from the F1
